In the crushing and mining industry, crusher wear parts are constantly exposed to heavy impact, high compressive loads, severe abrasion, and demanding working conditions. The performance and service life of wear parts such as jaw plates, mantles, concaves, bowl liners, cheek plates, and other parts are therefore closely related to the quality of the casting process as well as the subsequent heat treatment.

At our factory, heat treatment is an essential part of the manufacturing process for crusher wear parts. Through controlled heating, holding, and cooling processes, we optimize the microstructure and mechanical properties of cast wear parts, helping them achieve the required combination of hardness, toughness, strength, and wear resistance.

Why Is Heat Treatment Important for Crusher Wear Parts?

Crusher wear parts work under extremely demanding conditions. During crushing operations, the material is subjected to repeated impact and compression, while the working surfaces experience continuous abrasive wear.

A wear part with insufficient or improper heat treatment may have problems such as:

• Unstable mechanical properties
• Shorter service life
• Premature replacement and increased downtime

Proper heat treatment helps establish a suitable internal microstructure and improves the overall mechanical performance of the casting.

For this reason, heat treatment is not simply a post-casting process. It is a critical step in producing reliable and long-lasting crusher wear parts.

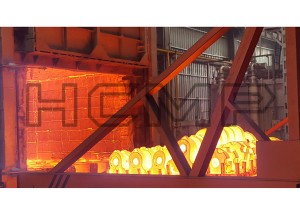

Heat Treatment Process for Crusher Wear Parts

Although the exact process varies depending on the material, part design, size, and application, heat treatment generally includes several important stages.

1. Heating

The cast wear parts are heated to a predetermined temperature according to the material grade and technical requirements.

The heating process needs to be carefully controlled. Excessively rapid or uneven heating can create temperature differences within the casting and potentially lead to internal stress or deformation.

Our production process focuses on maintaining stable heating conditions to ensure that the workpiece reaches the required temperature uniformly.

2. Heat Preservation

After reaching the specified temperature, the parts are held at that temperature for a controlled period.

This stage allows the internal structure of the casting to undergo the required metallurgical transformation.

The holding time depends on several factors, including:

• Material composition
• Casting thickness
• Part size and weight
• Furnace temperature
• Required microstructure
• Final mechanical properties

Proper temperature and holding time are essential for achieving consistent results throughout the entire casting.

3. Controlled Cooling

Cooling is another critical stage of the heat treatment process.

Different materials require different cooling methods and cooling rates. Depending on the material and application, the process may involve water cooling, air cooling, or other controlled cooling methods.

For high manganese steel crusher wear parts, controlled water quenching is commonly used to obtain the desired metallurgical structure and mechanical properties.

Improper cooling can result in excessive residual stress, deformation, cracking, or unsatisfactory mechanical performance.

Quality Control During Heat Treatment

Heat treatment quality cannot be judged only by the furnace temperature. A complete quality control system is required to ensure that the final product meets the specified requirements.

At present, our heat treatment quality control include:

• Monitoring heating temperature
• Controlling holding time
• Monitoring cooling conditions
• Checking hardness
• Inspecting casting appearance
• Checking dimensions
• Metallographic examination when required
• Mechanical property testing when required
• Recording and tracing production parameters

By monitoring key parameters throughout the process, we can reduce variations between different production batches and improve product consistency.

The Benefits of Proper Heat Treatment

A well-controlled heat treatment process can provide several important benefits for crusher wear parts:

Longer Service Life

Improved microstructure and mechanical properties can help wear parts withstand demanding crushing conditions for longer periods.

Better Wear Resistance

Suitable hardness and metallurgical structure help reduce excessive wear and improve the utilization of the wear material.

Improved Impact Resistance

Good toughness helps reduce the risk of cracking and premature failure under heavy impact.

More Consistent Product Quality

Stable heat treatment parameters help ensure that wear parts produced in different batches have more consistent performance.

Reduced Downtime

Longer-lasting wear parts mean fewer unexpected replacements and less equipment downtime.

Lower Operating Costs

Although the initial purchase price is important, the total cost of ownership also depends on service life, replacement frequency, labor, and downtime. High-quality heat-treated wear parts can contribute to lower overall operating costs.

Our Heat Treatment Capability

At our factory, we consider heat treatment an important part of our overall quality management system.

From casting to heat treatment, machining, inspection, and final packaging, each stage is controlled according to the requirements of the specific crusher wear part.

We understand that different crushing applications require different combinations of hardness, toughness, and wear resistance. Therefore, material selection and heat treatment parameters can be adjusted according to factors such as:

• Crusher model
• Part size and weight
• Feed material
• Abrasiveness of the material
• Impact conditions
• Crushing application
• Customer’s service-life requirements

Our goal is not simply to produce a casting that meets a drawing. We aim to provide reliable crusher wear parts with consistent performance in real working conditions.
